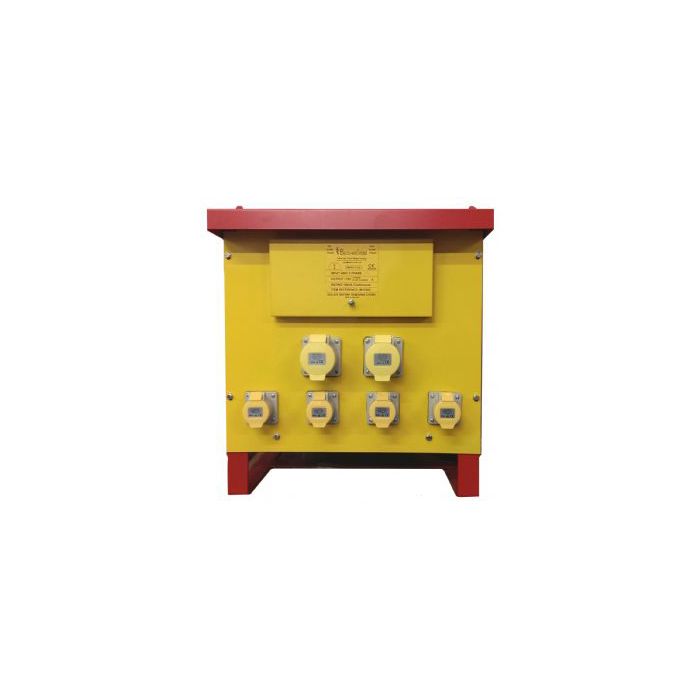

10kVA 3ph portable Site Transformer Made to comply with reduced low voltage regulations ensuring safe electrical supplies on site. Robust IP23 painted steel case complete with carry handles.
Features
Double-wound design for mains isolation.
Insulated drip proof portable steel case (IP23).
110v centre tapped to earth (cte) secondary winding to reduce the risk of shocks.
Input terminal strip for hard wired connecting.
Input 16A TP type D MCB reducing the chance of overload.
4x output 16A 3pin sockets, 2x output 32A 3pin sockets (BSEN 60309).
2x 20A DP type C MCBs protecting the output 16A sockets.
2x 32A DP type C MCBs protecting the output 32A sockets
