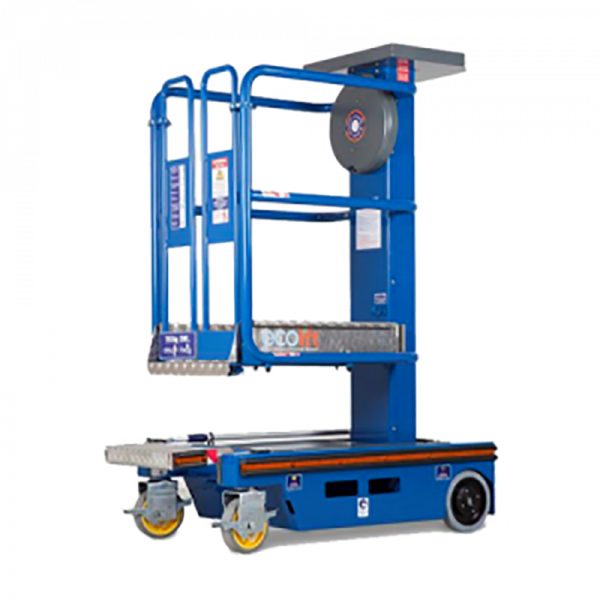

ECOLIFT 4.2MTR (WORKING HEIGHT)
Gone are the days of climbing steps or podiums, no more slips, trips or having to balance
The Eco range is a major step change in low level access. Non powered, powered access
It’s easy, fast and efficient. No power needed, nobatteries to charge
Specifications:
Working Dimensions:
Maximum working height: 4.20m
Maximum platform height: 2.20m
Basket dimensions: 850mm (L) x 644mm (W)
Working footprint: 1.28m x 0.7m
Working footprint: 1.28m x 0.95m. Wind Rated
Safe working load: 150kg (1 person + tools )
Maximum manual force: 200N
Maximum gradient for operation: 0 degrees
Maximum wind force: Internal use only / 0 (zero) mph
Maximum wind force external use (Wind Rated) 28mph
Maximum wheel force: 234kg
Maximum wheel force: 245kg Wind Rated
Maximum caster point load: 234kg (229 KN)
Maximum caster point load: 245kg (2.4kn) Wind Rated
Maximum Sound pressure level: Less than 70Dba
